It's not only locomotives that are rebuilt, adapted, modernised and adjusted to the needs of the times but also goods wagons. |

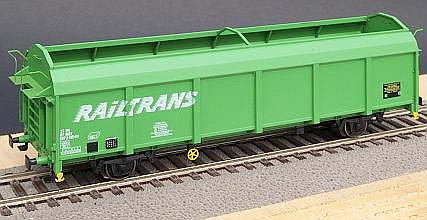

This model represents an early version of the Railtrans private wagon 23 RIV 87 SNCF 607 2 045-4. |
A later version is available as model 3107. |
The wagon originally had relatively low flaps ( for emptying the wagon by sideways tipping) when the hinge was situated under the manipulating platform. The divided platform was firmly attached to the wagon frame. Rungs in the middle section between the reinforcing uprights of the doors served as a access ladder to the platform. |

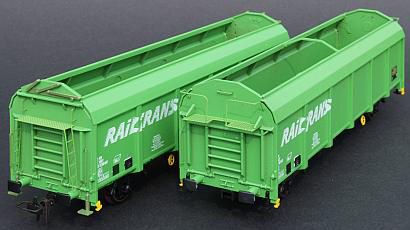

| Modifications included strengthened doors which widened upwards with the hinge spindle extending tight under the loading opening. (Previously the undivided platform was curved where it met the movable door.) |
| The (later) additional side ladder simplified access to the platform and a new operating handle installed so that the essential covering net could be thrown more simply over the loading opening. The cross support in the middle of the load opening was removed and additional hand grips provided for safety. |
| Overall length between buffers: 14.02m, wheelbase: 8.5m, Load capacity: Tare 14.5t and max. laden weight 25.5t. |
